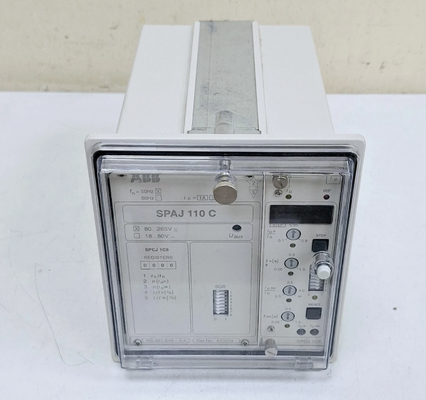

SPAJ110C-DA ABB Earth-fault Relay
Selective Protection for Solidly Earthed and Low Resistance Earthed Power Systems
Product Overview
The SPAJ110C-DA ABB Earth-fault Relay provides selective protection for solidly earthed and low resistance earthed power systems, offering reliable fault detection and system protection.
Key Features
  • Low-set neutral overcurrent stage with definite time or inverse time characteristic
  • High-set neutral overcurrent stage with definite time characteristic
  • Output relay functions to be freely configured
  • Flexible adaptation to different types of applications
  • Serial interface for connecting to fibre optic object bus and substation control systems
  • Digital display of setting values, neutral current measurements, and memorized fault values
  • Continuous self-supervision with auto-diagnostics of hardware and software
Technical Description
The SPAJ 110 C earth-fault relay is a secondary relay connected to the current transformers of the protected object. Earth-fault current measurement can be achieved via either a set of three phase current transformers in a residual current connection or a window-type core-balance current transformer.
When using a core-balance current transformer, ensure sufficient repeatability at high earth-fault currents. During an earth-fault event, the relay delivers alarm signals, trips circuit breakers, or initiates external auto-reclose relays based on application requirements and relay configuration.
SPAJ110C-DA ABB Earth-fault Relay with Selective Protection for Solidly Earthed and Low Resistance Earthed Power Systems 0
Product Specifications
Brand Name ABB
Model SPAJ110C-DA
Ordering Information SPAJ110C-DA
Catalog Earth-fault relay
Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 16cm x 16cm x 12cm
Country of Origin Malta
HS Code 8537101190
Availability In Stock
Shipping Port Xiamen
Warranty 12 months
Lead Time 3-5 work days
Shipping Partners DHL, UPS, TNT, FedEx and EMS
