Emerson A6500-LC LVDT Converter for Delta V DCS

• All types of the PR 9350/xx linear displacement transducers
• K20315/xx linear displacement transducer sets
• Inductive half-bridge sensors
• Inductive LVDT sensors as PR 9314/41

This manual contains information concerning the proper and correct use of the A6500-LC inductive converter. Read the operating manual completely before installing and using the device. Comply with all safety instructions. This operating manual applies for A6500-LC LVDT Converters with hardware revision 03 and 04. See type plate for revision level.

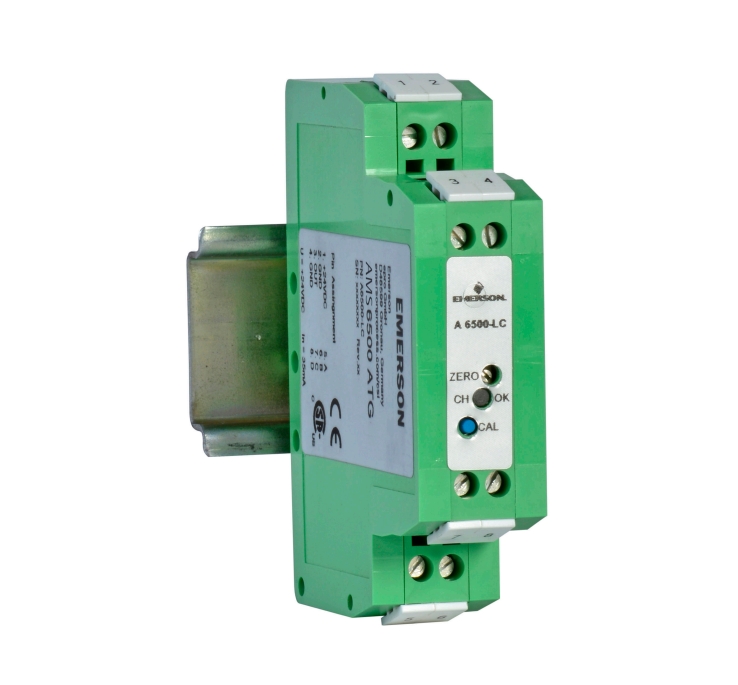

The A6500-LC LVDT Converter is a single channel device to connect inductive half-bridge sensors or LVDT sensors to the A6500-UM Universal Measuring Card. The converter powers the sensor with an excitation voltage and converts the displacement proportional sensor signal to an output voltage range that is suitable to the Universal Measuring Card. The converter can be powered either by the Universal Measuring Card or by an external power supply.

On request, the A6500-LC can be calibrated on one sensor (factory calibration). The measuring range of the sensor is scaled on the full output voltage range of 2 V to 18 V. Then, the sensor and the A6500-LC form a measuring chain. Replacing the sensor requires a recalibration of the A6500-LC.
